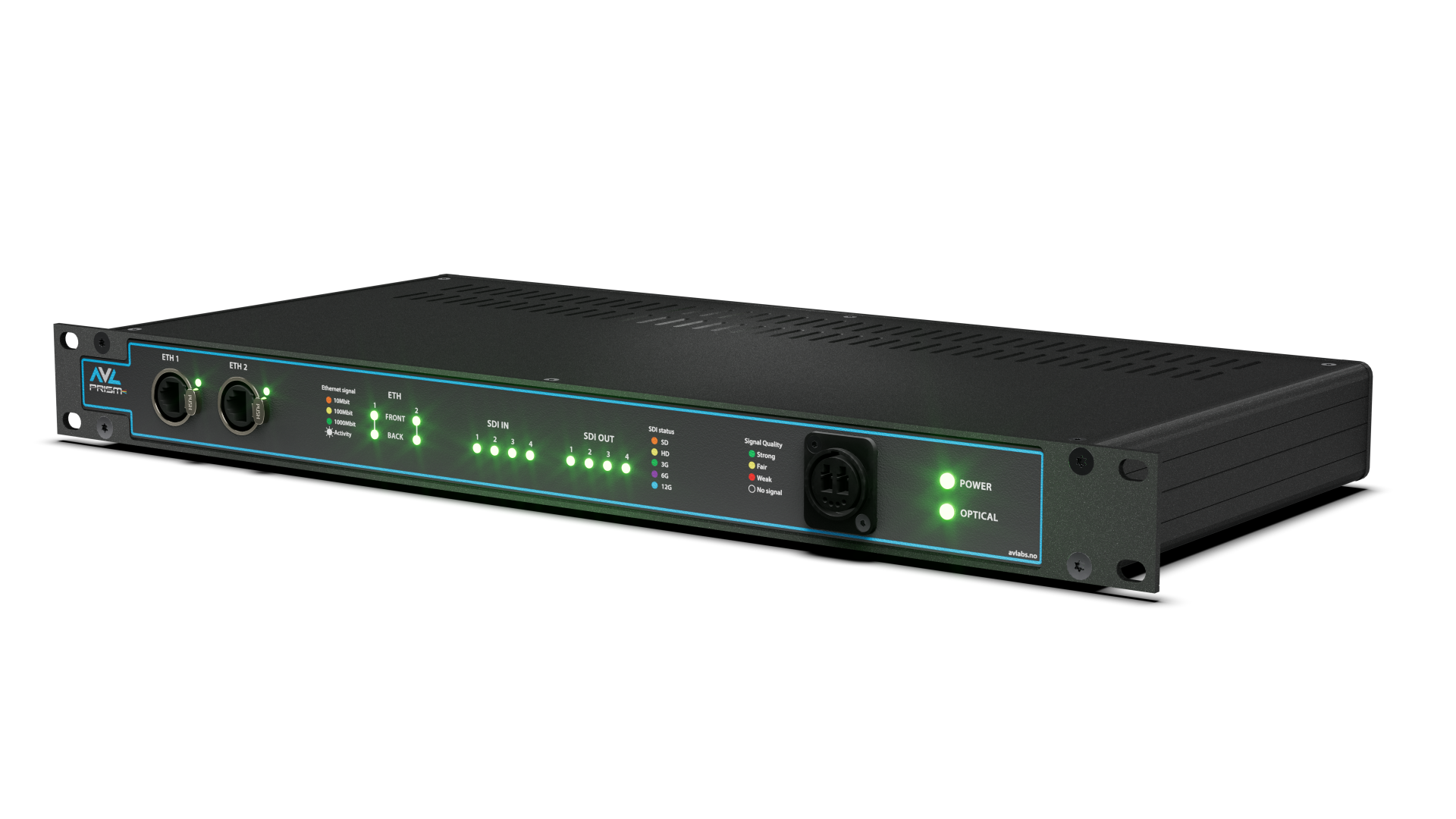

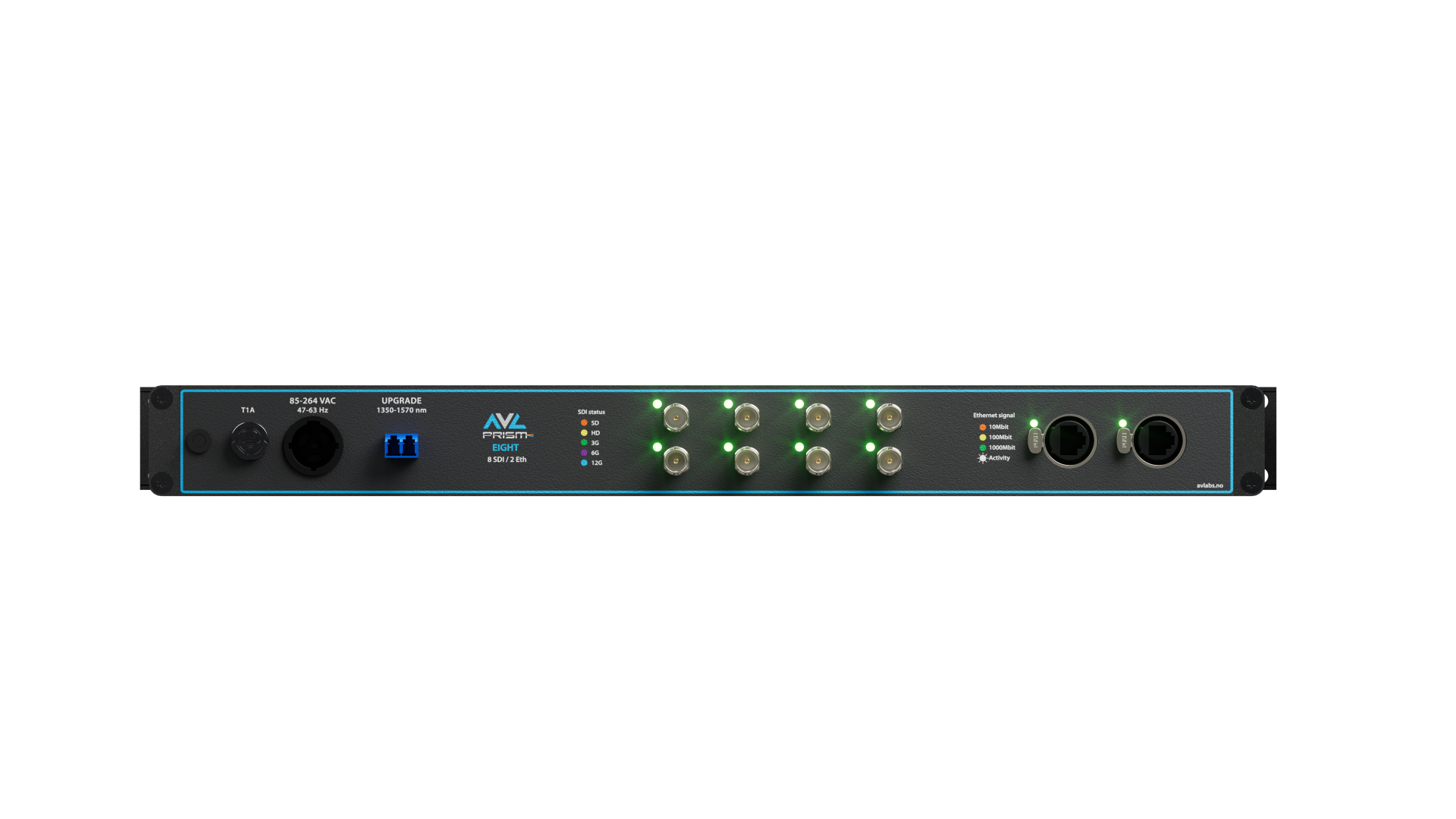

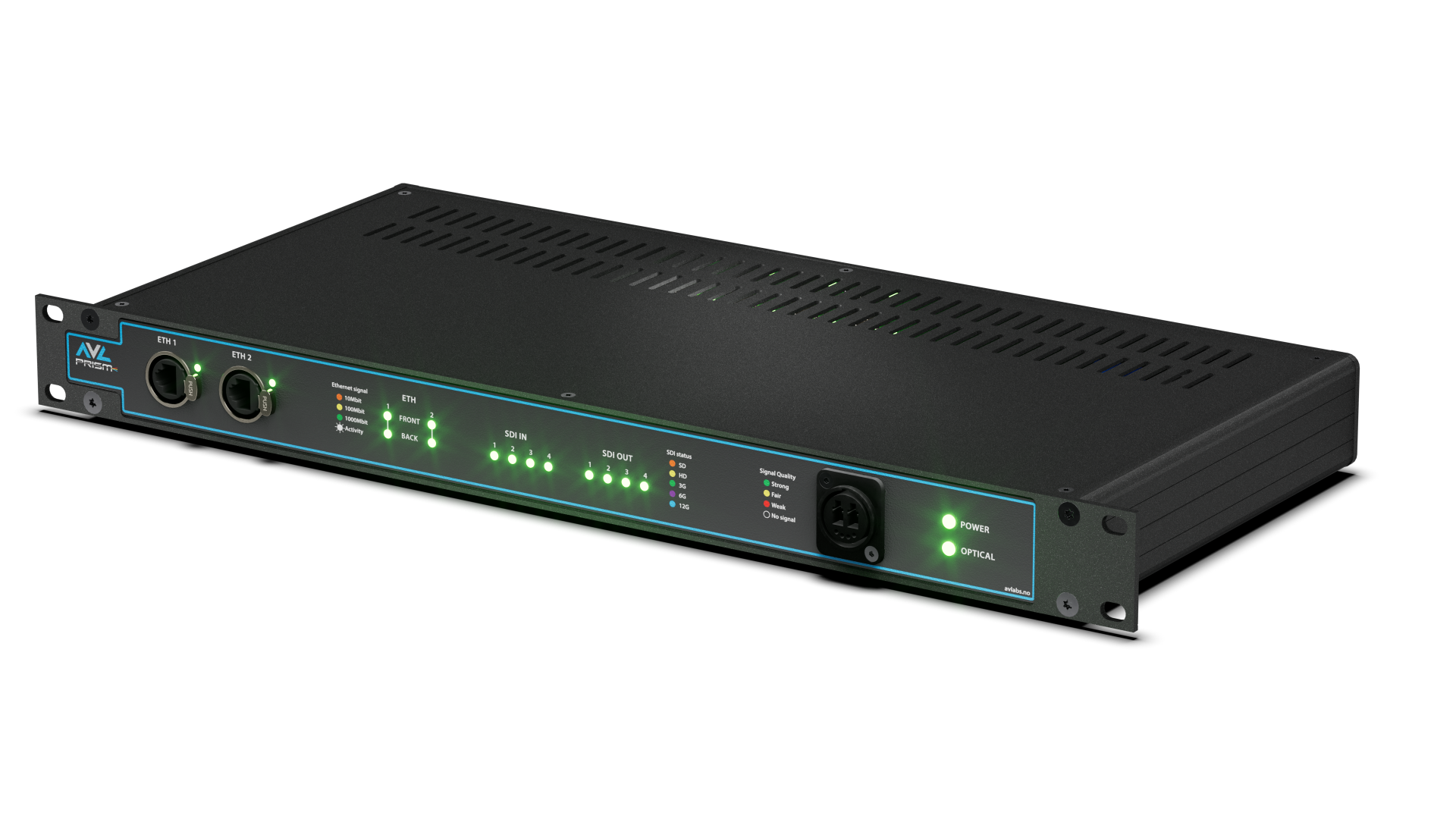

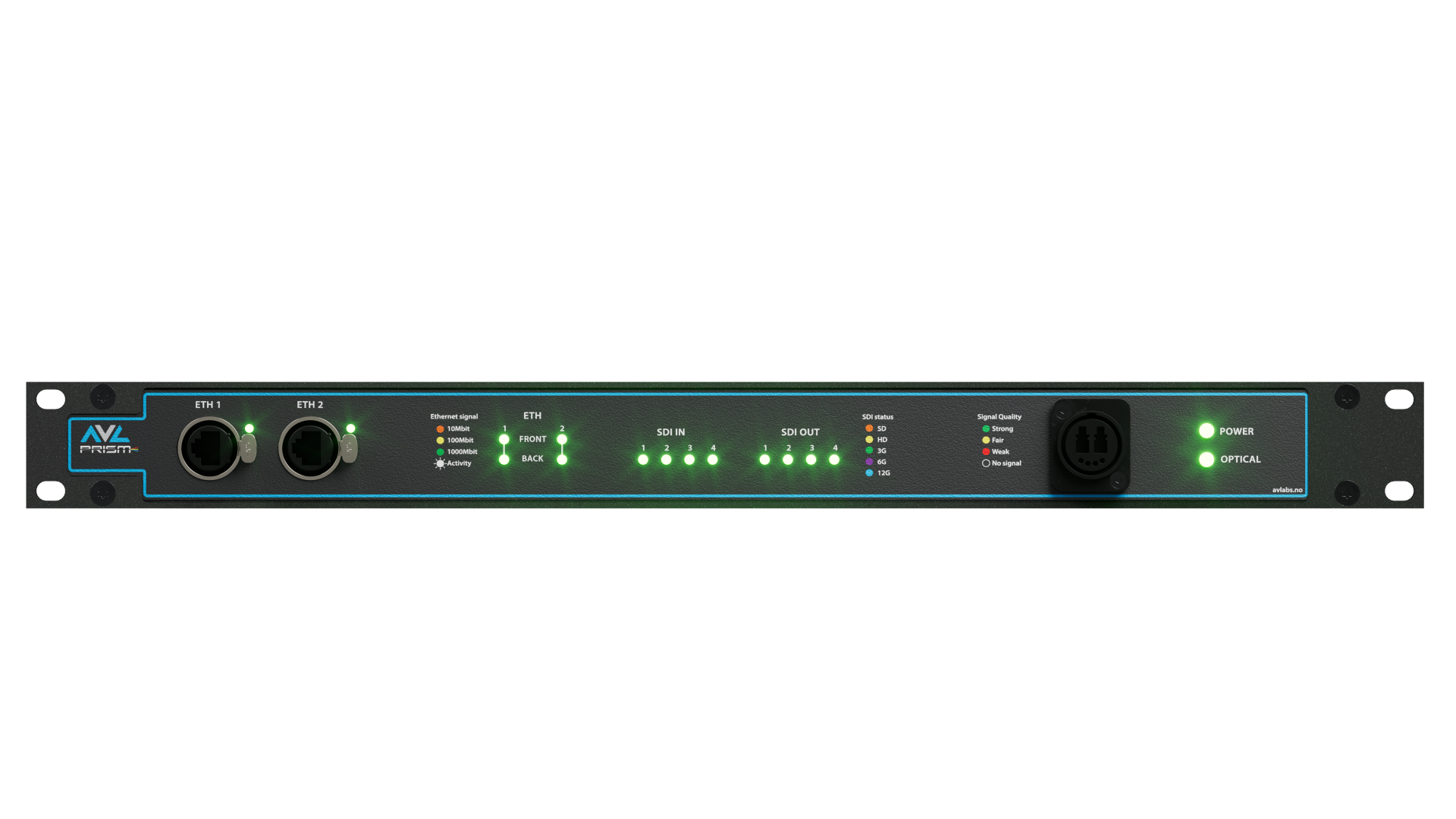

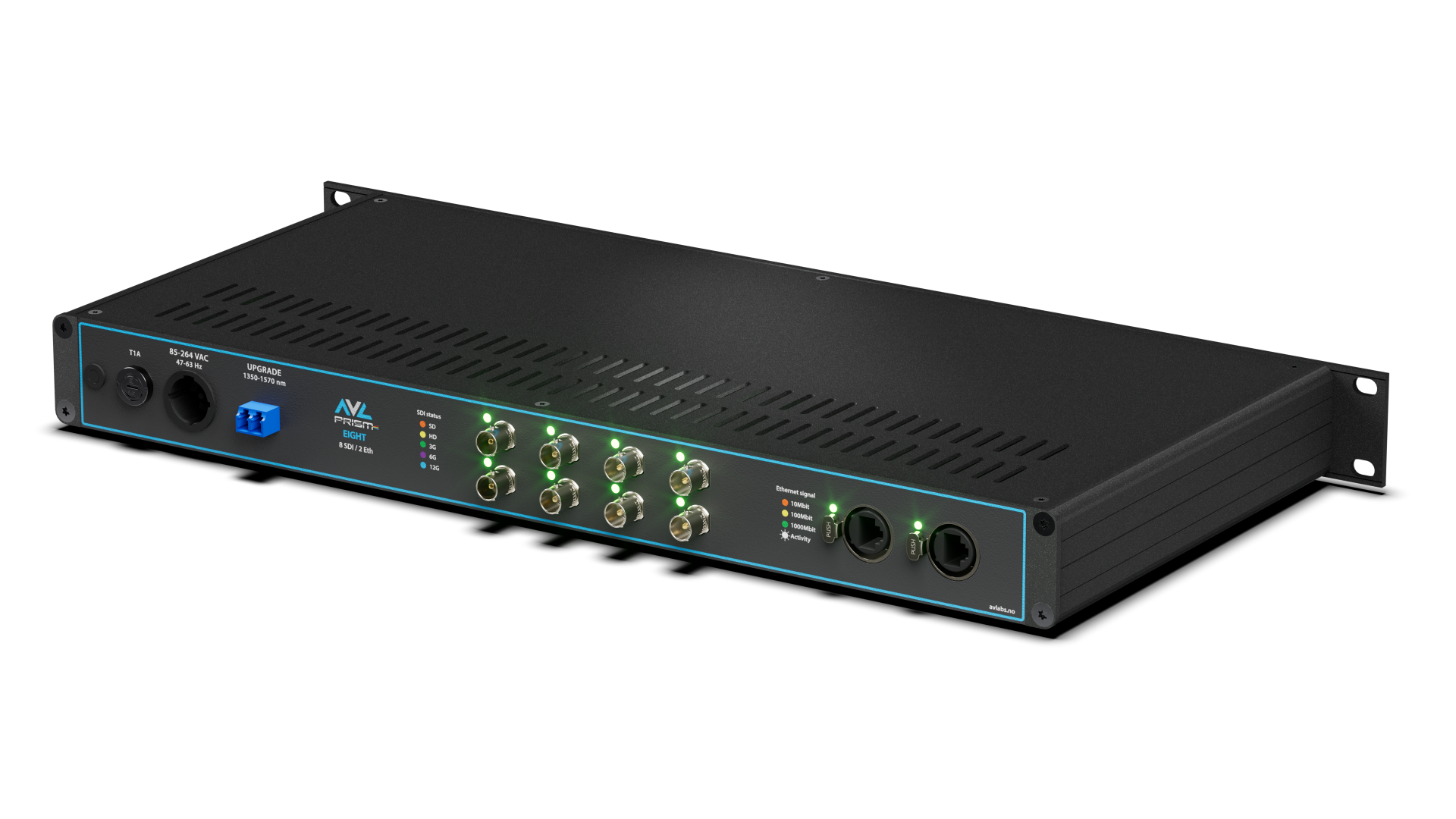

Prism EIGHT Rack
Effortless Setup
PRISM fiber kit is designed for plug and play use, allowing you to set up quickly and start enjoying highspeed connectivity with no configuration needed.
Lightweight and Compact
PRISM boxes are lightweight and compact and will replace ten copper cables. This makes you save time on setup, and gives you a better overview of the signal cable routing in your setup.
Rack mount
PRISM EIGHT Rack is designed rack mount, but is signal compatible with the Prism EIGHT field boks.
Configuration
4 SDI in, 4 SDI out and 2 separate Ethernet networks.
Lossless Quality
Enjoy crystal-clear audio and video with no compression, preserving the highest quality of your data.
Zero Latency
Experience lightning-fast responsiveness with PRISM fiber kit, ensuring no delays in your connection.
Rugged design
The rugged aluminium design and use of professional industry standard connectors ensures seamless connectivity and optimal performance.
Long Distance Transmission
The PRISM fiberoptical mux system can transmit multiple individual SDI video signals and data over long distances up to 40 km.
Technical specifications
- Chassis: Aluminium chassis
- Mount: 1U 19'' rack
- Weight: 2.1kg/4.63lbs
- Dimensions (LxDxH): 482 x 233 x 44mm / 19 x 9.17 x 1.73 in
Editions
- PRISM EIGHT RACK 3G, 8x 3G-SDI (4 in + 4 out), 2x Ethernet 1 Gb switched network
- PRISM EIGHT RACK 12G, 8x 12G-SDI (4 in + 4 out), 2x Ethernet 1 Gb switched network
Fiber connectors
- Neutrik opticalCON DUO/QUAD
- Fieldcast 2/4 Core
- SMPTE 311M
Other upon request
Single Mode Fiber only
