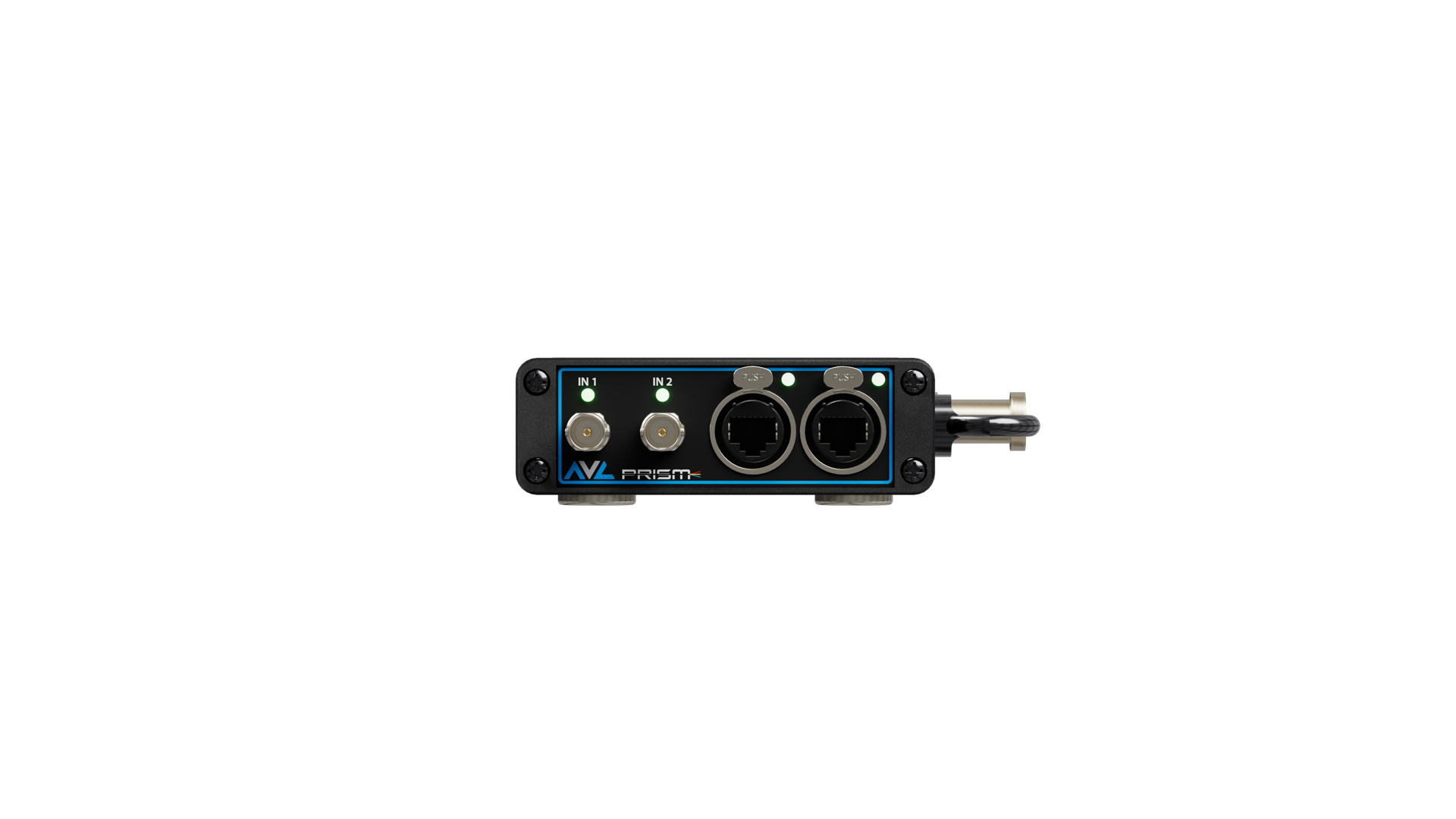

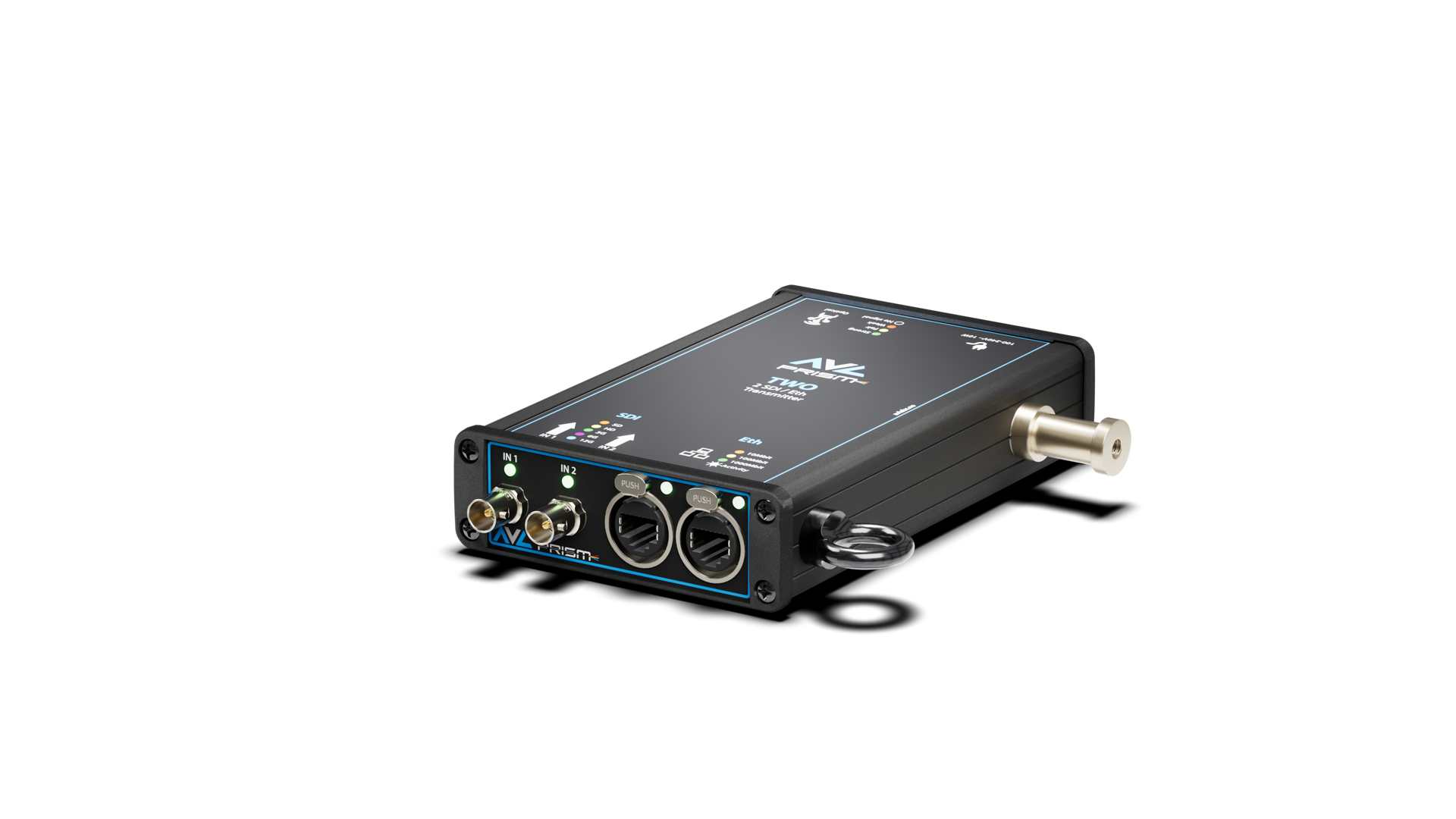

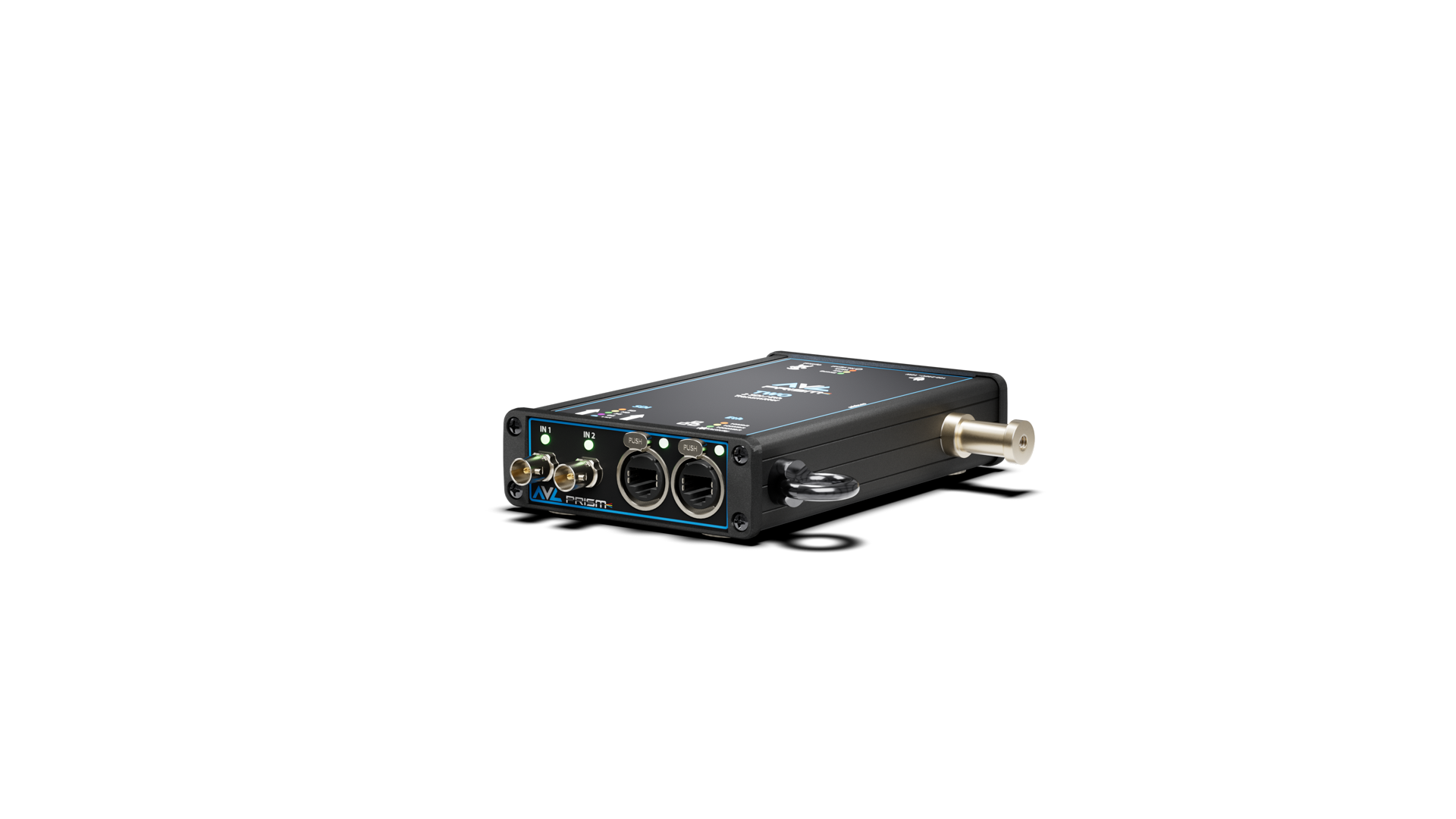

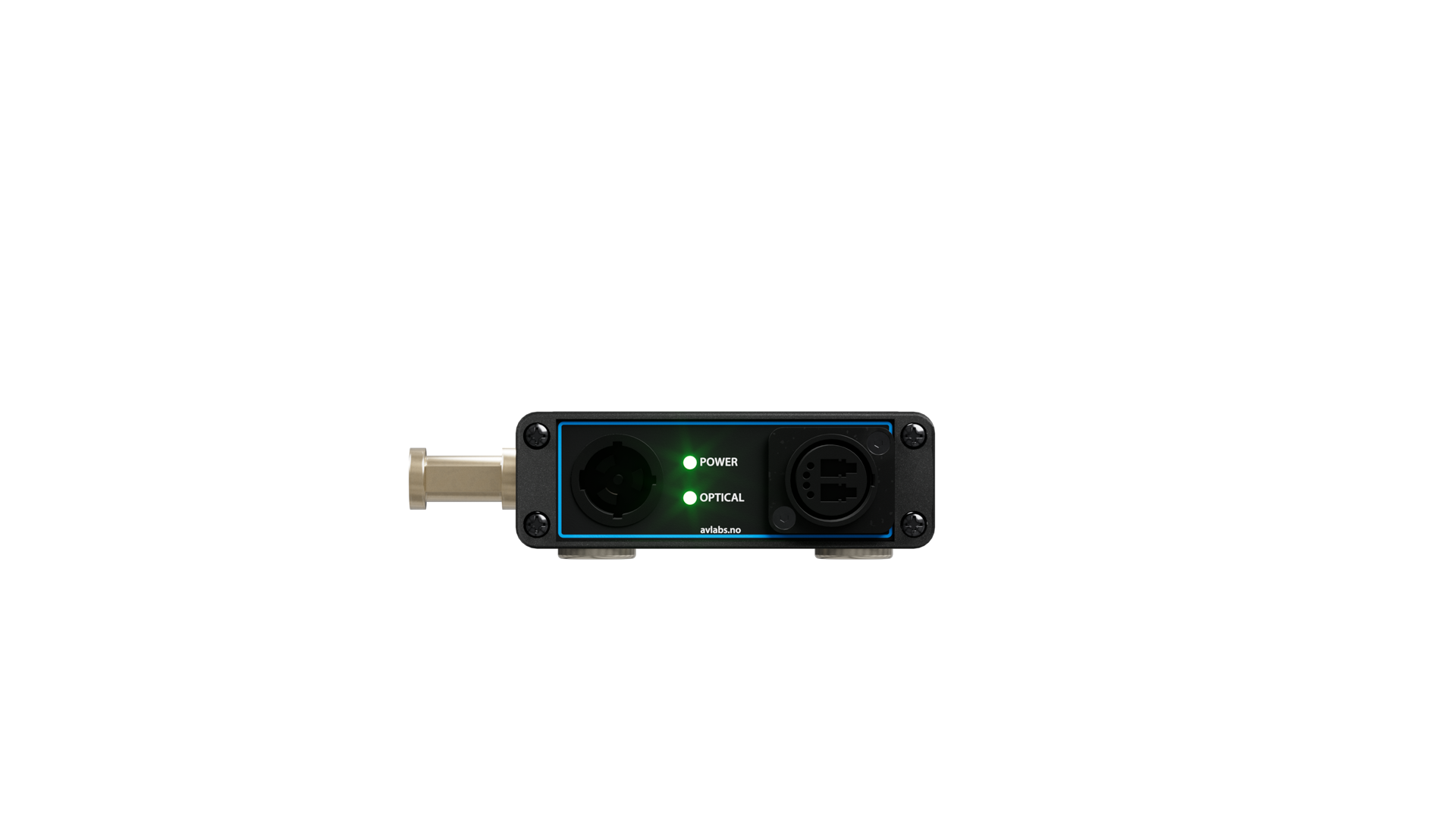

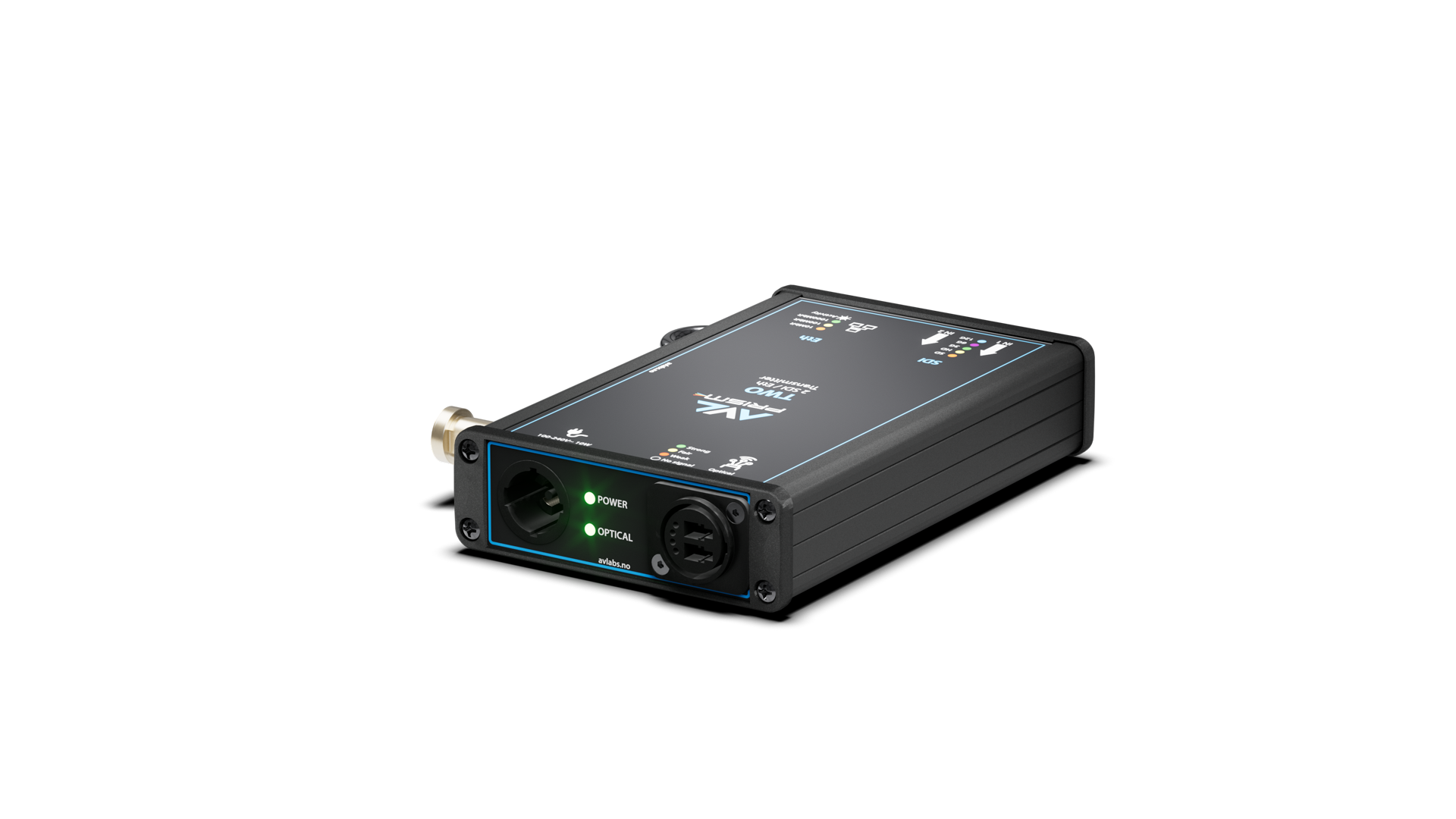

Prism TWO
Effortless Setup
PRISM fiber kit is designed for plug and play use, allowing you to set up quickly and start enjoying highspeed connectivity with no configuration needed.
Lightweight and Compact
PRISM boxes are lightweight and compact and will replace three copper cables. This makes you save time on setup, and gives you a better overview of the signal cable routing in your setup.
Truss mount
PRISM EIGHT Rack is designed for truss mounting with clamp.
Configuration
Receiver | Transmitter | Tranceiver for SDI and Ethernet network
Lossless Quality
Enjoy crystal-clear audio and video with no compression, preserving the highest quality of your data.
Zero Latency
Experience lightning-fast responsiveness with PRISM fiber kit, ensuring no delays in your connection.
Rugged design
The rugged aluminium design and use of professional industry standard connectors ensures seamless connectivity and optimal performance.
Long Distance Transmission
The PRISM fiberoptical mux system can transmit multiple individual SDI video signals and data over long distances up to 40 km.
Technical specifications
- Chassis: Extruded Aluminium chassis
- Mount: M10 Superclamp mount and lifting eye for safety wire
- Weight: 0.6kg/4.63lbs
- Dimensions (LxDxH): 108 x 179 x 36mm / 4.25 x 7.05 x 1.42 in
Editions
- PRISM TWO TC 12G, 2x 12G-SDI (1 in + 1 out), Ethernet 1 Gb switched network
- PRISM TWO RX 12G, 2x 12G-SDI (2 out), Ethernet 1 Gb switched network
- PRISM TWO TX 12G, 2x 12G-SDI (2 in), Ethernet 1 Gb switched network
All also available in 3G version
Fiber connectors
- Neutrik opticalCON DUO/QUAD
- Fieldcast 2/4 Core
- SMPTE 311M
Other upon request
Single Mode Fiber only
